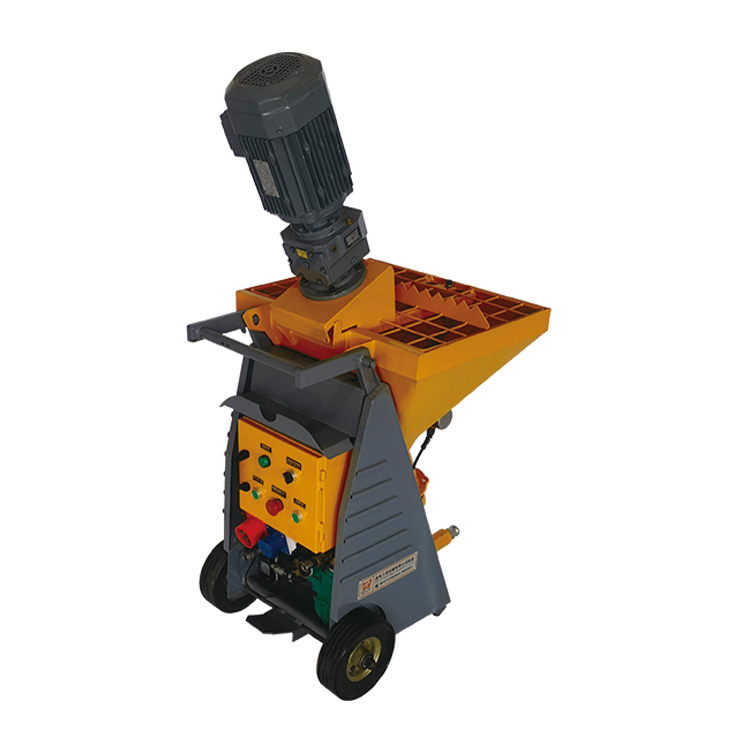

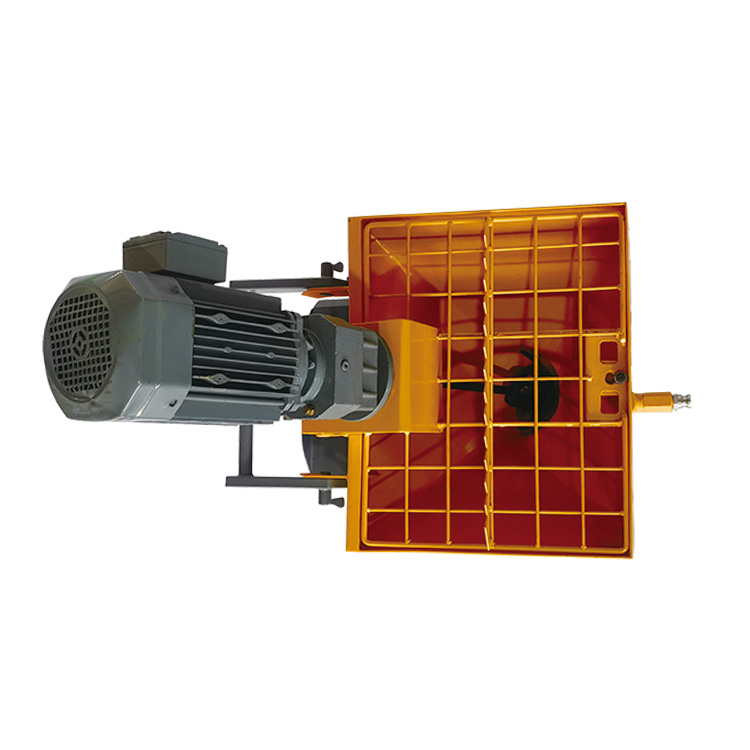

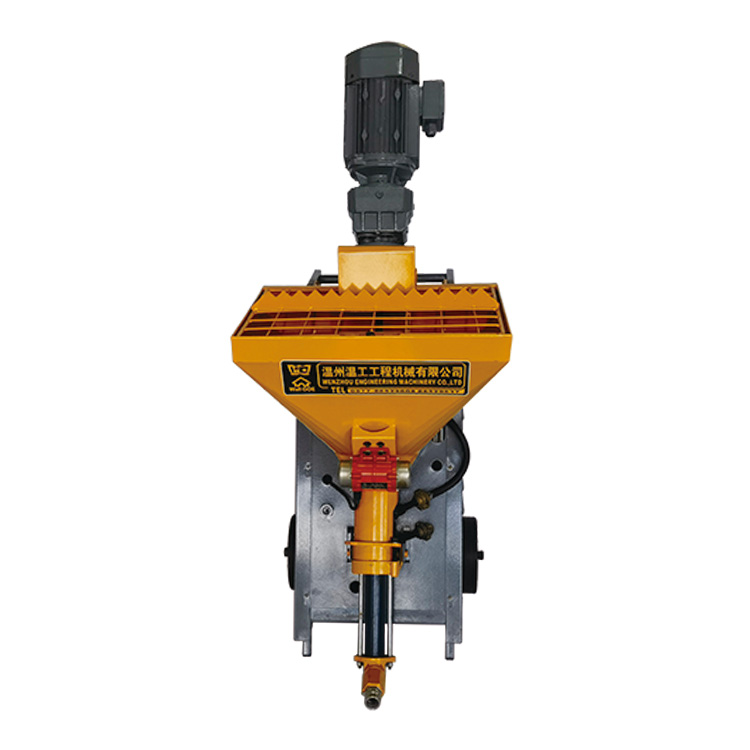

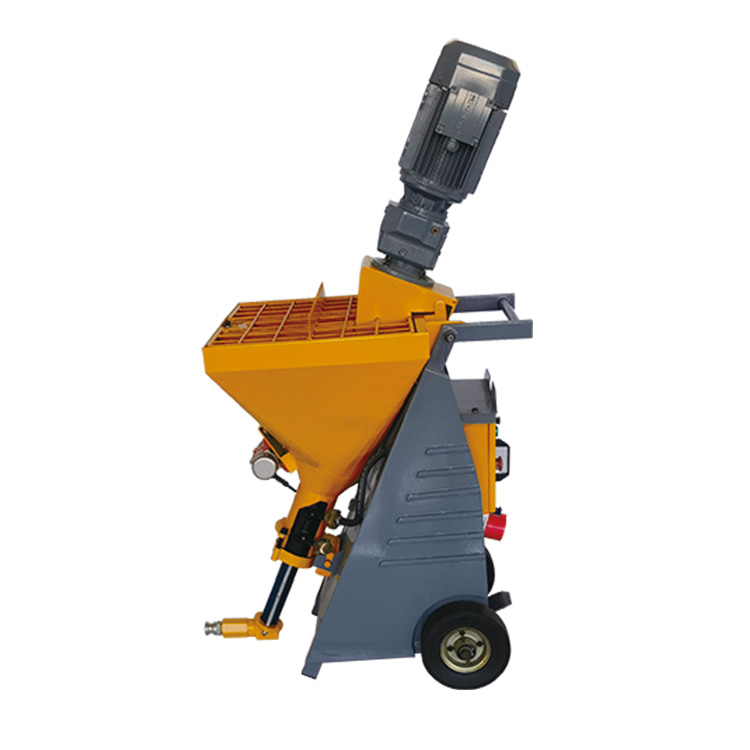

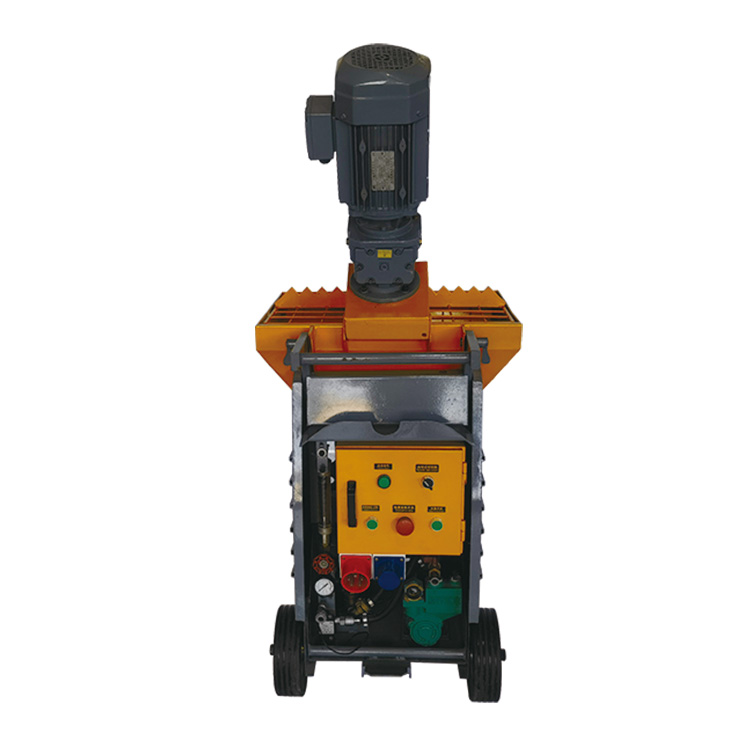

JP15 miniature special mortar pump spraying machine
Product Description
Features:
JP20 type JP15 type They are all micro-sized special mortar pumping and spraying machines, suitable for pumping and spraying waterproof mortar, real stone paint, putty, latex paint and fiber, thermal insulation, fire-resistant, reinforcement, filling and bonding mortar. They have stepless speed regulation and displacement. It has the function of pressure and is capable of spraying thin layers of highly viscous mixtures, grouting gaps and holes in buildings, and is also used for spraying coatings on building walls. Among them, JP15 is equipped with automatic metering water supply, automatic feeding and mixing mechanism, which integrates mixing, pumping and spraying functions into one to achieve continuous operation, stable working performance and uniform mixing of slurry. It has a modular structure, small size, and is easy to carry. It is suitable for cement-based, gypsum-based and various polymer mortars. It is a product developed in response to "Oriental Yuhong".
Technical Parameters:
|
Power supply |
380V 50HZ |
Maximum displacement |
15L/min |
Delivery pressure |
20bar |
|
Pumping distance |
30m |
Pumping height |
40m |
Main motor powe |
2.2 KW |
|
Mixing capacity |
50L |
Maximum particle size |
3mm |
Length |
520mm |
|
Width |
600mm |
High |
1380mm |
Weight |
135KG |
